Radar Chart

A Radar chart (also referred to as a spider chart) is a two-dimensional chart that can be used to represent multivariate data plotted in rows and columns in the graphical format.


SpreadJS supports radar charts in spreadsheets to allow users to perform dynamic data comparisons and carry out comprehensive information analysis. Moreover, radar charts make it easier and quicker to visualize and manipulate information by enabling in-depth assessment of the aggregate values of two or more data series.

Working with Radar Charts

Radar charts are typically used to compare two or more entities over a range of characteristics. In a radar chart, three or more quantitative variables are represented on axes with each category having its value axis radiating from the center point. Lines are used to connect the series values and the relative position or angle of the axes is usually unpredictable.


Spread JS supports three types of Radar charts - 1) Basic Radar Chart 2) Filled Radar chart and 3) Radar Chart with markers.

Example

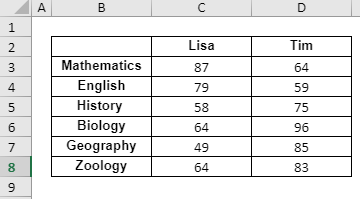

In the example shown below, the test score analysis for two students - Lisa and Tim is depicted for six different subjects - Mathematics, English, History, Biology, Geography, and Zoology with the help of different types of radar charts plotted for the following data in the spreadsheet:



Basic Radar chart

An image depicting test score analysis of two students is shown below in a basic radar chart with areas highlighted by different line colors for each student:



Filled Radar Chart

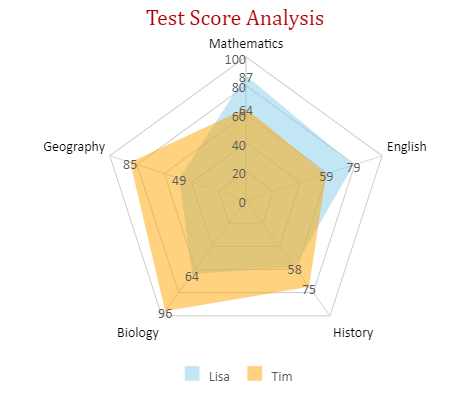

An image depicting test score analysis of two students is shown below in a filled radar chart with areas highlighted by different colored regions for each student:



Radar Chart with Markers

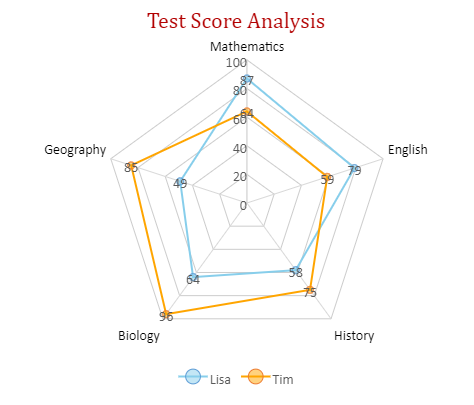

An image depicting test score analysis of two students is shown below in a radar chart with markers representing scores for each subject along with areas highlighted by different line colors for each student:




The following code sample shows how to create a basic radar chart, filled radar chart, and radar chart with markers in a worksheet to analyze the scores of two students.

// initializing Spread
var spread = new GC.Spread.Sheets.Workbook(document.getElementById('ss'), { sheetCount: 3 });
// get the activesheet
var activeSheet = spread.getSheet(0);
// Add data for chart
var dataArray =
[
    ['', 'Lisa', 'Tim'],
    ['Mathematics', 87, 64],
    ['English', 79, 59],
    ['History ', 58, 75],
    ['Biology', 64, 96],
    ['Geography', 49, 85],
    ['Zoology', 64, 83]
];
activeSheet.setArray(1, 1, dataArray);
activeSheet.setColumnWidth(0, 20);
for (var i = 1; i < 4; i++) {
    activeSheet.setColumnWidth(i, 100);
}
activeSheet.options.gridline.showHorizontalGridline = false;
activeSheet.options.gridline.showVerticalGridline = false;
activeSheet.getRange(1, 1, 7, 3)
    .hAlign(GC.Spread.Sheets.HorizontalAlign.center)
    .setBorder(new GC.Spread.Sheets.LineBorder('black', GC.Spread.Sheets.LineStyle.thin),
        { all: true });
activeSheet.getRange(1, 2, 1, 3).font('bold normal 10pt Arial');
activeSheet.getRange(2, 1, 6, 1).font('bold normal 10pt Arial');

// Add Radar chart
// 1 - radar
// 2 - radarFilled
// 3 - radarMarkers
var chart = activeSheet.charts.add('RadarChart', GC.Spread.Sheets.Charts.ChartType.radar, 250, 0, 500, 410, '$B$2:$D$7');
var legend = chart.legend();
legend.visible = true;
legend.position = GC.Spread.Sheets.Charts.LegendPosition.bottom;
chart.legend(legend);

var chartArea = chart.chartArea();
chartArea.fontSize = 14;
chart.chartArea(chartArea);

var dataLabels = chart.dataLabels();
dataLabels.showValue = true;
dataLabels.showSeriesName = false;
dataLabels.showCategoryName = false;
dataLabels.position = GC.Spread.Sheets.Charts.DataLabelPosition.above;
chart.dataLabels(dataLabels);

var title = chart.title();
title.text = 'Test Score Analysis';
title.fontSize = 22;
title.color = "#b20000";
title.fontFamily = 'Cambria';
chart.title(title);

var axes = chart.axes();
axes.primaryCategory.style.color = '#000000';
axes.primaryValue.majorGridLine.color = '#ccc';
chart.axes(axes);

var series = chart.series();
var lisaSeries = series.get(0);
lisaSeries.border.color = 'skyblue';
lisaSeries.backColor = 'skyblue';
lisaSeries.backColorTransparency = '0.5';
series.set(0, lisaSeries);
var timSeries = series.get(1);
timSeries.border.color = 'orange';
timSeries.backColor = 'orange';
timSeries.backColorTransparency = '0.5';
series.set(1, timSeries);
