TableSheet Interactive Behavior

TableSheet has rich interaction behaviors which help to make the tablesheet accessible and usable by as many people as possible.

Zoom In and Out

TableSheet supports zoom in and zoom out by mouse wheel with Ctrl key.


Zoom in using Ctrl + Mouse wheel up and zoom out using Ctrl + Mouse wheel down.



Resize Columns

TableSheet supports resizing the column by dragging the right edge of the column header cell.

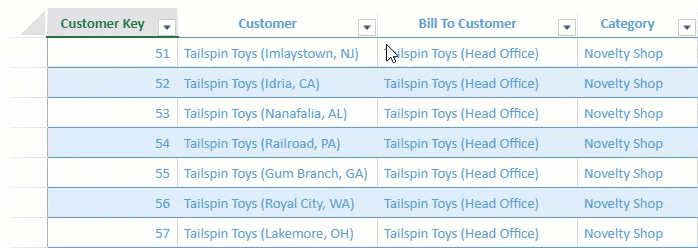

You can automatically fit a column width by double-clicking the right edge of a column header cell. The AutoFitType enumeration option cellWithHeader can be set as well.




If you want to retroactively change the neighboring column’s width along with resizing the selected column, the columnResizeMode can be set to split to change the default behavior.




The following code sample shows how to set the column resizing to automatic fit mode as well as change the resize mode to split.

// set autoFitType to cellWithHeader
spread.options.autoFitType = GC.Spread.Sheets.AutoFitType.cellWithHeader;
// set the ResizeMode to Split
spread.options.columnResizeMode = GC.Spread.Sheets.ResizeMode.split;

You can also set a default column width for the tablesheet view using the ViewOptions class property defaultColumnWidth. By default, the column width is 60.

var view = customerTable.addView("myView", [
    { value: "customerKey", caption: "Customer Key" },
    { value: "customer", caption: "Customer" },
    { value: "billToCustomer", width: 200, caption: "Bill To Customer" },
    { value: "category", width: 120, caption: "Category" },
    { value: "buyingGroup", width: 180, caption: "Buying Group" },
    { value: "primaryContact", width: 170, caption: "Primary Contact" },
    { value: "validFrom", width: 150, caption: "Valid From" },
], false, {
    // Set default column width
    defaultColumnWidth: 100
});

Cut, Copy, and Paste

TableSheet supports cutting, copying, and pasting cells, rows, or columns using shortcut keys or through the context menu.

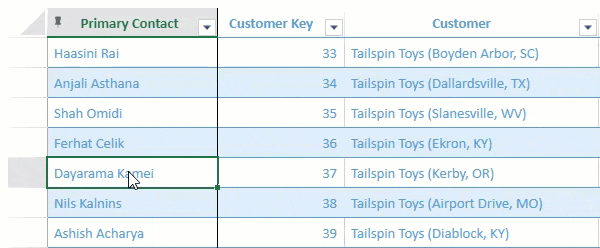

The following shortcut keys are supported for the clipboard operations:

Operation

Windows

Mac

Cut

Ctrl + X

Command + X

Copy

Ctrl + C

Command + C

Paste

Ctrl + V

Command + V

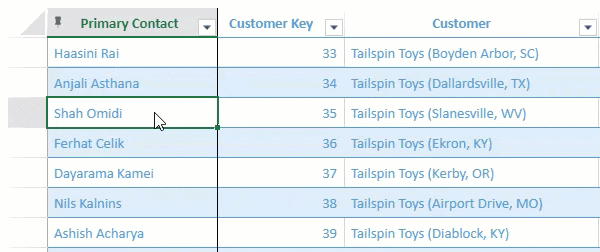

Right-clicking on a cell, row, or column selection will display the context menu consisting of the clipboard operations.

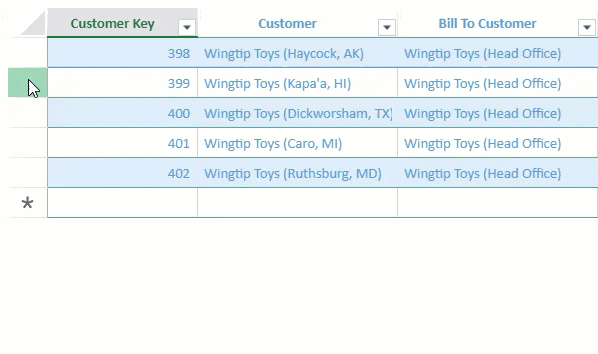

If you want to paste multiple rows in a new row, the allowExtendPasteRange option should be set to true.




The following code sample shows how to enable the allowExtendPasteRange option in SpreadJS.

// enable allowExtendPasteRange option to enable pasting multiple rows in new row
spread.options.allowExtendPasteRange = true;

Drag Operations

TableSheet supports various drag operations like drag fill, drag-drop, and drag copy.

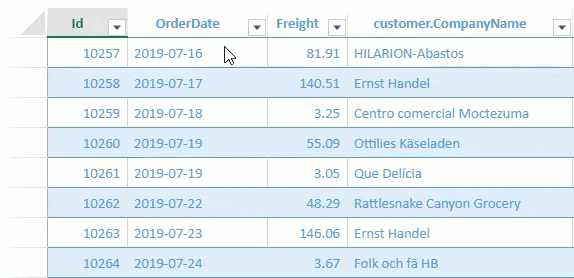

  • Drag fill is done by clicking on the bottom right corner of a selected area and moving the mouse down or up.




    The series is copied when dragging directly, or the series is filled when dragging with the Ctrl key pressed. The drag fill result can be changed to either "Copy Series" or "Fill Series" by the pop-up menu.

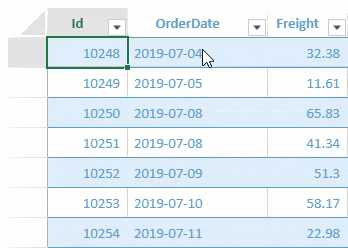

  • Drag-drop is done by dragging the selection border of a selected area and dropping it into the destination cell.

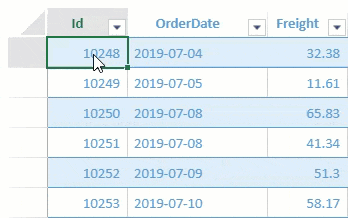

  • Drag copy is done by dragging the selection border f the selected area while holding the Ctrl key and dropping it into the destination cell.



Shortcut Keys

TableSheet supports various shortcut keys including tablesheet-specific operations such as "Save all inserted and updated rows".


The following table lists all the supported shortcut keys by tablesheet.

Operation

Shortcut Key

General

Copy

Ctrl+C

Cut

Ctrl+X

Paste

Ctrl+V

Enter Edit

F2

Direct Input

Char

Exit Edit

Esc

Delete

Del

Delete and Enter Edit

BackSpace

Input submit, Move Down

Enter

Input submit, Move Up

Shift + Enter

Next line input

Alt+Enter, Ctrl+Enter

Save all inserted and updated rows

Ctrl + Shift + S

Navigation

Move up

Up key

Move down

Down key

Move left

Left key

Move right

Right key

Move down

Enter

Move right

Tab

Move left

Shift + Tab

Move to Top/Bottom/Left/Right

first cell

Ctrl + Arrow

Move to the next page

PageDown

Move to the previous page

PageUp

Selection

Expand to mouse click selection

Shift + Mouse click

Expand cell selection

Shift + Arrow
