Add Charts with Multi-selections

SpreadJS provides support for adding charts with multi selection which enables you to dynamically alter the visualizations based on selected criteria. Whether you're comparing multiple scenarios, tracking the performance of specific categories, or analyzing the impact of various factors, the ability to interactively choose data points enhances the depth and precision of your analyses.

In Charts, multi-selection of data sources works as follows:

  • The first selected range acts as the benchmark data source.

  • In case the user does not specify the appropriate data orientation, it infers the optimal direction by considering the data source.

  • Name area, Category area, and Data area are separated based on their respective data type.

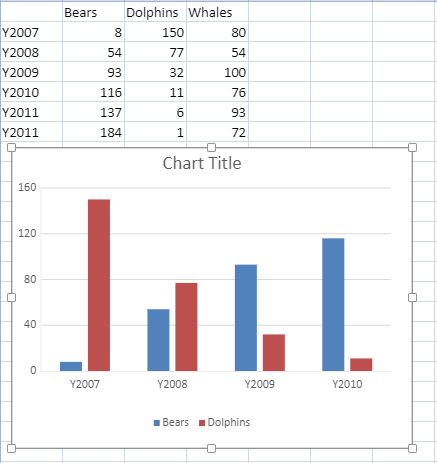

Example: The following screenshot shows the annual recorded data of Bears, Whales, and Dolphins. Additionally, it includes a chart that depicts the bar chart of the selected data range of Bears and Dolphins using a multi-select option.




The following code sample depicts the selected data range of Bears and Dolphins using a multi-select option.

// Add chart.
sheet.charts.add("chart1", GC.Spread.Sheets.Charts.ChartType.columnClustered, 0, 100, 400, 300, "Sheet1!$A$1:$C$2,Sheet1!$A$3:$C$5");

Also, if a data source does not match the chart's structure, the respective data source is discarded, however, if the first data source does not contain a number, it is treated as a Name area.

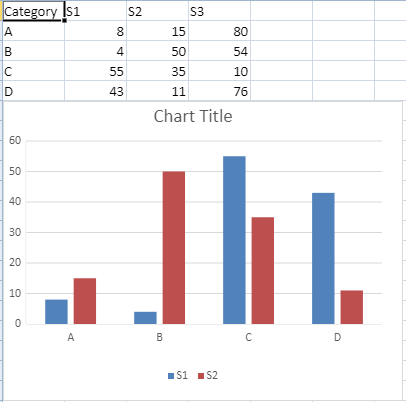

Example: The following screenshot shows the first data source as a string. As a result, the chart uses the first data source as the name area and the selected data source as the category area and the data area.



Using Designer

You can also enable this feature through the SpreadJS Designer using the steps mentioned below:

  1. Select the first data area from the data table and press the Ctrl key to select other required data sources.

  2. Select the type of chart for the data available inside the Insert > Charts tab group.

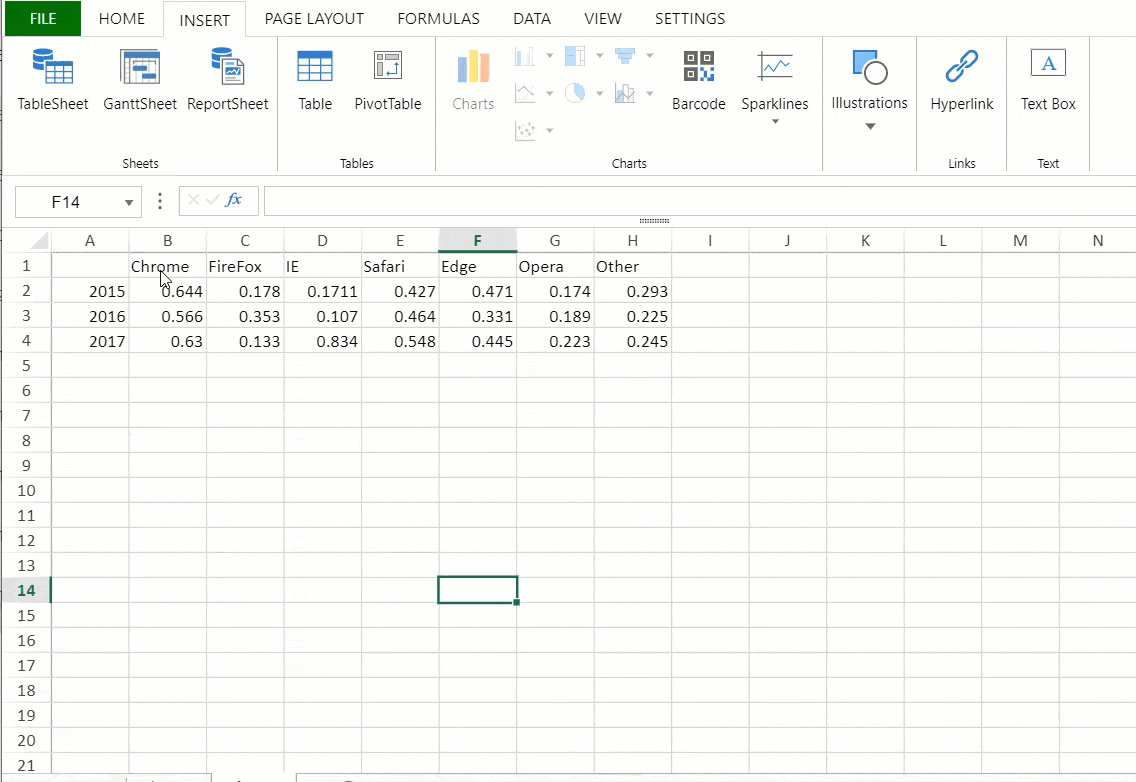

The following GIF shows how to create the chart using the multi-selection option in the data source.
