Gantt Chart Components

The Gantt chart is a special sheet column in GanttSheet that illustrates project schedules. It shows the start and finish dates of each task and typically adds information such as the completion state of each task and dependencies between tasks.

Gantt charts have two basic components, Timescale and Chart Area.

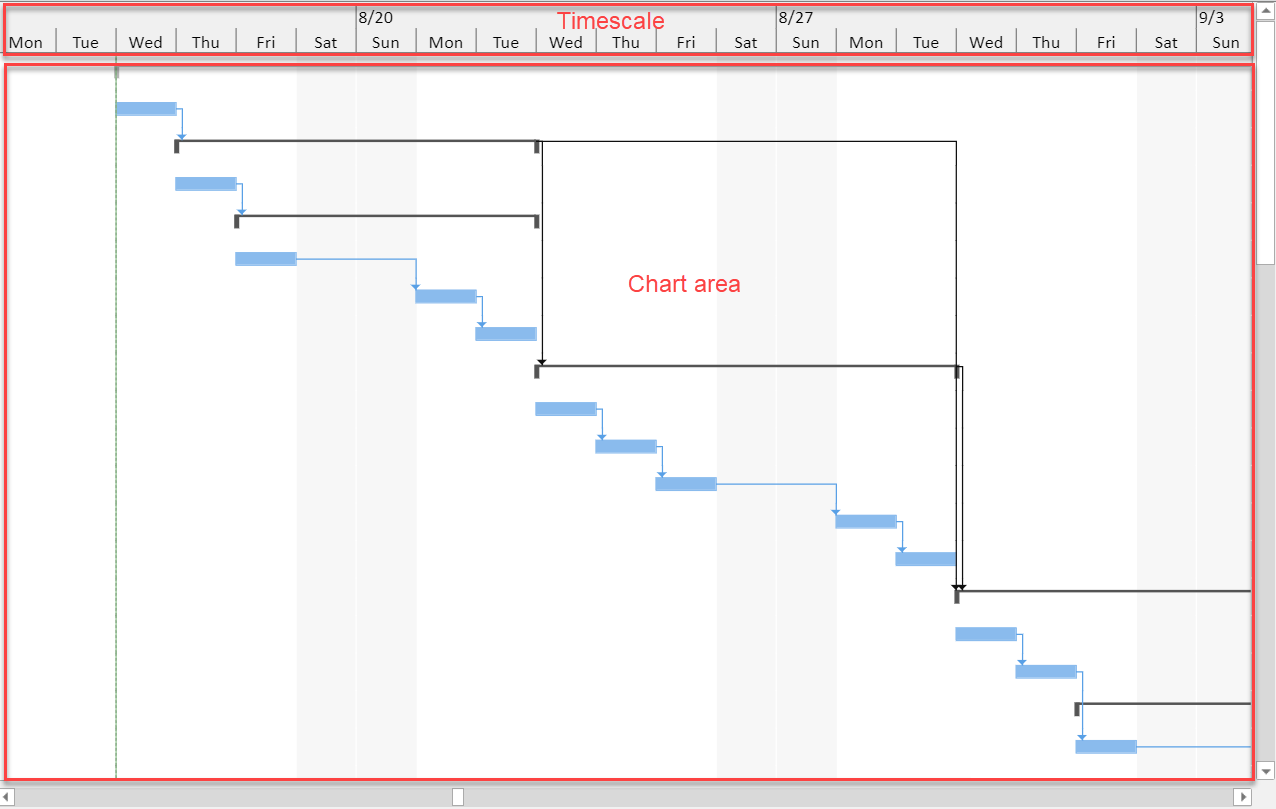

Chart components

Timescale

Timescale represents the column header of a Gantt chart. It shows the smaller or greater time units, such as years, quarters, months, weeks, days and so on. The maximum time scale in a Gantt chart is year, and the minimum time scale is 15 minutes.

Timescale consists of three different tiers and a scale separator.

Timescale Tiers

Gantt chart has three tier modes, middle, middleBottom, and topMiddileBottom to show time scales. You can use the TimescaleTierMode enumeration to set the tier mode for the timescale.

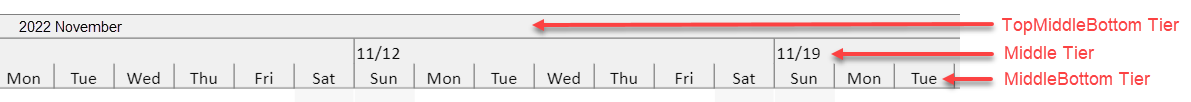

TimescaleTiers


The following code sample shows how to show the tier modes for timescale in a Gantt chart.

// Set the tier mode for the timescale.
   var timescale = ganttSheet.project.timescale;
   timescale.tierMode = GC.Spread.Sheets.GanttSheet.TimescaleTierMode.middle;

A timescale tier has the following configurable properties.

Properties

Type

Description

unit

GC.Spread.Sheets.GanttSheet.TimescaleUnit

The unit of the tier.

count

number

A number that represents the tick units. The default value is 1.

labelAlign

Left/center/right

The alignment of the tick label. The default value is ‘Left’.

showTickLines

boolean

The status of tick lines. The default value is ‘True’.

formatter

string

Formats the tick labels for the tier.

The formatter could be a Spread Number Format string for Date values like "yyyy-mm-dd", with GanttSheet special keywords support, or could be a callback function that will be executed in formatting.

The following sample code shows how to configure the middle tier properties.

// Set the tier configuration.
var timescale = ganttSheet.project.timescale;
var targetTier = "middleTier";
timescale[targetTier].unit = GC.Spread.Sheets.GanttSheet.TimescaleUnit.days;
timescale[targetTier].count = 2;
timescale[targetTier].labelAlign = "Center";
timescale[targetTier].formatter = "dddd";
timescale[targetTier].showTickLines = false;

Timescale Separator

You can also set the showScaleSeparator option to show the separate scale line between the topMiddleButtom and middle tiers. By default, this option value is True. To hide, you need to change the value of the showScaleSeparator option to false.

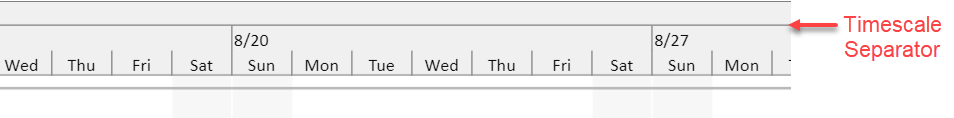

TimeScale Separator


The following code sample shows how to hide the scale separator line.

// Hide scale separator.
ganttSheet.project.timescale.showScaleSeparator = false;

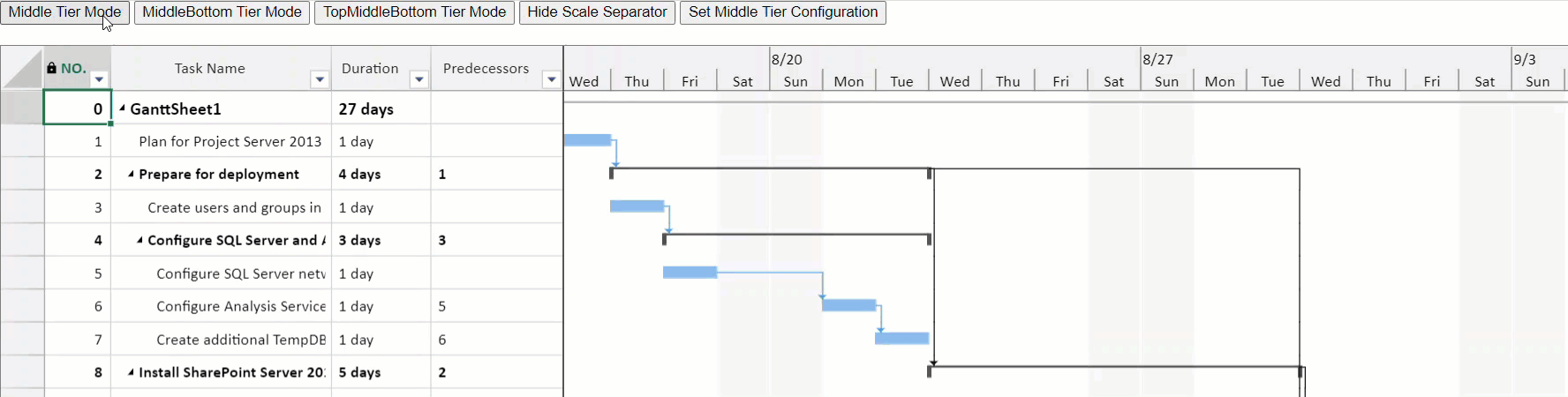

The Gif below demonstrates the configuration of timescale appearance in a Gantt chart.


TimescaleOptions

Chart Area

The chart area refers to the body part of a Gantt chart. It enables you to show working and non-working time, configure chart layout, change taskbar styles, add task summary, show gridlines, link/unlink tasks etc. You can also change the layout styles, zoom in/zoom out the Gantt chart, and scroll the timescale horizontally or vertically to get a suitable view.

For configuring the chart area and its various features, refer to the below topics:

Topic

Description

Non-Working Time

Change the nonworking time style in Gantt chart.

Gridlines

Change the gridlines style in Gantt chart.

Taskbar Styles

Change the style of the specified taskbar with the specified style rule.

Task Layout

Configure the Gantt chart layout with link line mode, taskbar height, date text format, and whether round the taskbar to whole days.

Zoom

Zoom the Gantt chart area to the suitable view.

Scroll

Scroll the Gantt chart area to the suitable view.
