(Showing Draft Content)

Sort

SpreadJS lets you sort pivot table data so that you can organize it for quick and convenient analysis. Sorting is especially useful when dealing with large amounts of data. You can sort data by using PivotTable.sort function that accepts the object of sortInfo as a parameter.

SpreadJS allows users to sort and order PivotTable data in four different ways:

  1. Sort by field item name

  2. Sort by value

  3. Sort by custom field item value

  4. Sort by custom callback

Sort by Field Item Name

To sort pivot table data by a field, you can specify the field name and use the sortType property of sortInfo and set the sorting order to ascending, descending, or custom.


The below image demonstrates descending sort order applied to the "Category" field.

pivot-sort-by-field-name


The following code sample shows how to sort pivot table data by field item name:

let pivotTable = spread.getActiveSheet().pivotTables.get("PivotTable");
 var sortInfo = {
  sortType: GC.Pivot.SortType.desc
 };
pivotTable.sort("Category", sortInfo);

Using Designer

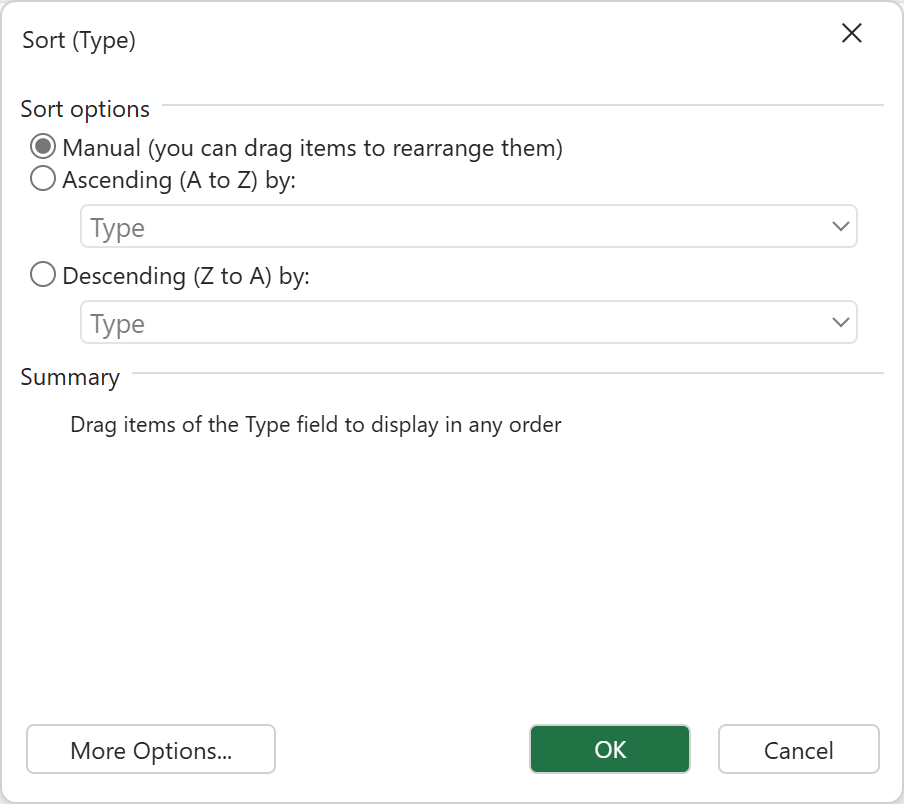

You can also sort data through the designer by clicking More Sort Options.. from the Filter Dropdown of a field. This option opens a Sort Field dialog where you can select the target field and set the sort type as ascending or descending.


The following image demonstrates how to sort by field item name using the designer:

pivot-sort-by-field-name

Sort by Value

To sort a pivot table data by values of a field, you can set the sortType and sortValueFieldName properties of the sortInfo class. The sortValueFieldName property lets you specify name of the field by which you want to sort the data. This feature lets you sort the pivot table data by the values in the "Grand Total" column.


The below image demonstrates the "Category" field being sorted in ascending order by the "Quantity" value.

pivot-sort-by-value


The following code sample shows how to apply sorting by value on the pivot table.

let pivotTable = spread.getActiveSheet().pivotTables.get("PivotTable");
var sortInfo = {
    sortType: GC.Pivot.SortType.asc,
    sortValueFieldName: "Quantity"
 };
  pivotTable.sort("Category", sortInfo);

Using Designer

You can also sort data through the designer by clicking More Sort Options.. from the Filter Dropdown of a field. This option opens a Sort Field dialog where you can select the target field and set the sort type as ascending or descending.


The following image demonstrates how to sort by value using the designer:

pivot-sort-by-value

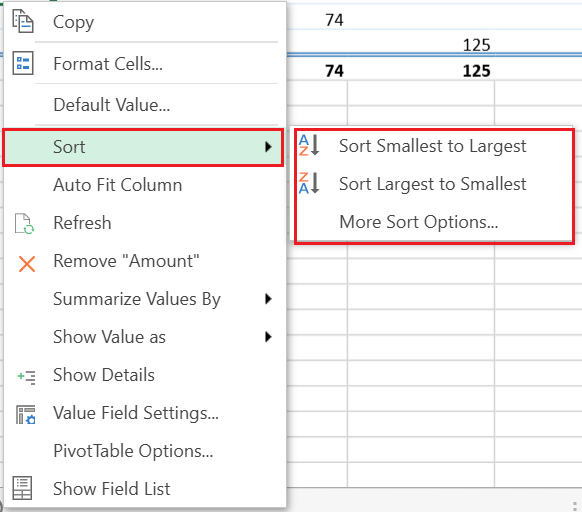

You can also use the Sort option from the context menu of the value area to sort pivot data by values. The context menu provides the following three sort options:

  • Sort Smallest to Largest

  • Sort Largest to Smallest

  • More Sort Options...

While the first two options sort values in ascending and descending order, respectively, the More Sort Options... opens a dialog depending on the value area.

The following table describes how this option behaves when accessed through context menu of the following value areas:

Value Area

Dialog

Behavior

Normal Value Area

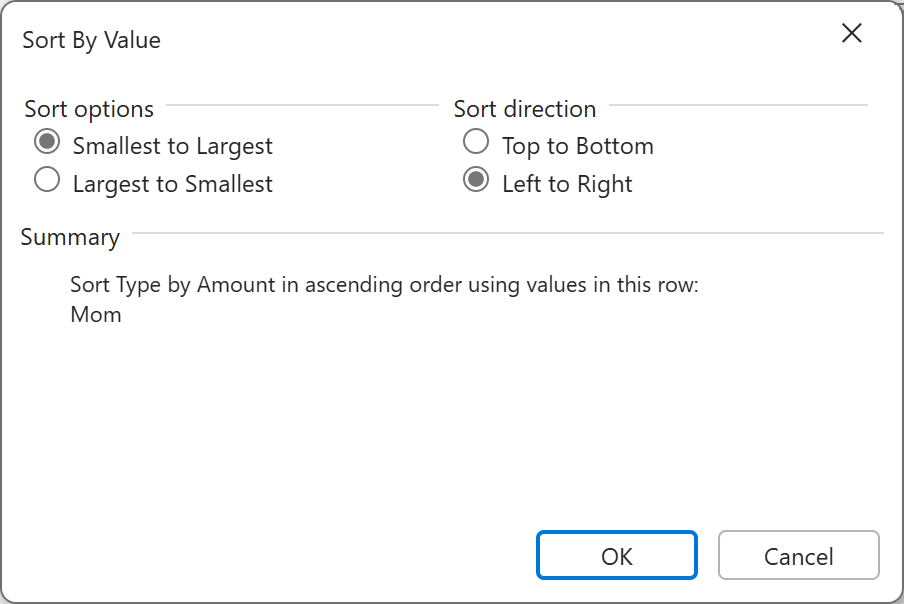

sort-by-value1

The Sort by Value dialog appears.

Grand Total Area

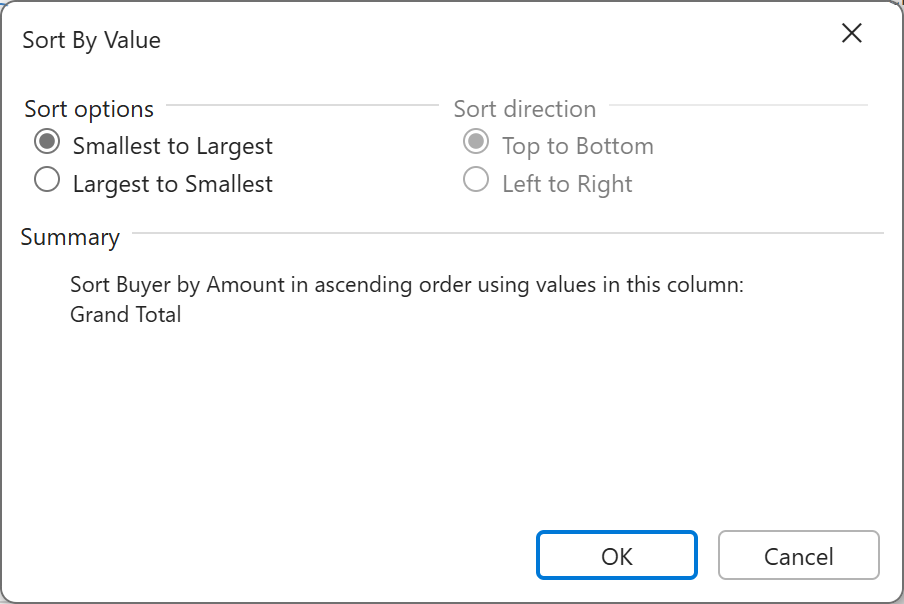

sort-by-value2

The Sort by Value dialog appears. However, sort direction is disabled along with the following conditions:

  • In case of grand total column, the direction is top to bottom by default.

  • In case of grand total row, the direction is left to right by default.

  • In case of grand total row and column, the dialog does not appear.

Row Header Area/Corner Area

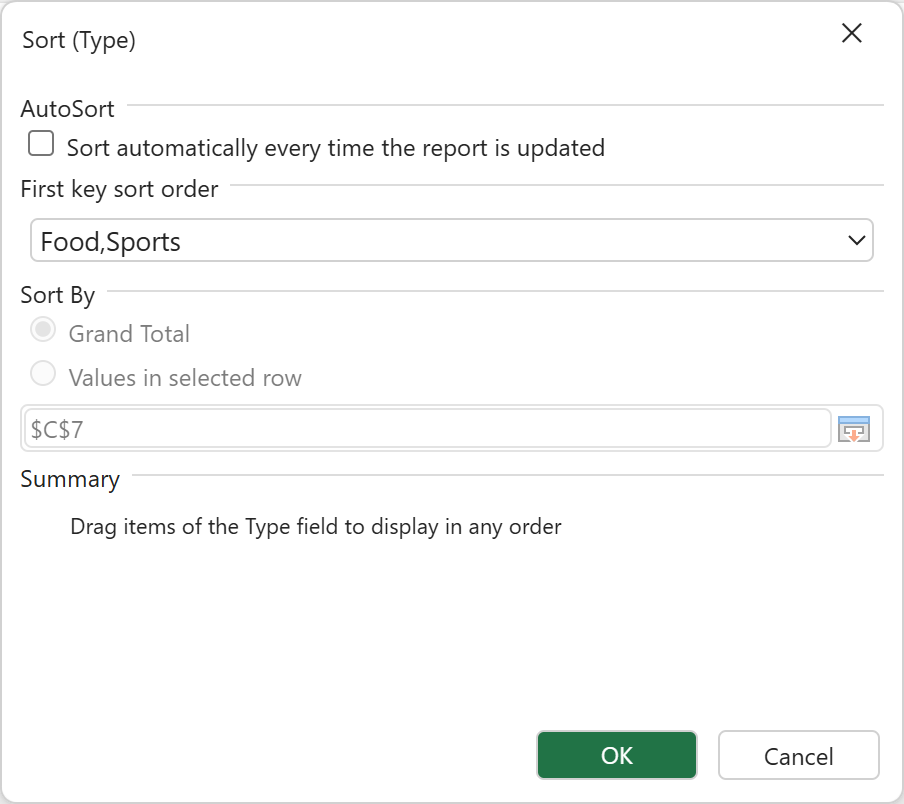

sort-by-value3

Opens the Sort Field dialog along with the following conditions:

  • In the case of compact layout, the Sort option does not appear in the corner area.

  • If the selected field is ΣValues field, the Sort by Value dialog appears.

  • If the selected row area is ΣValues item, no dialog appears.

Column Header Area

sort-by-value4

Opens the Sort Field dialog along with the following conditions:

  • If the selected field is ΣValues field, the Sort by Value dialog appears.

  • If the selected column area is ΣValues item, no dialog appears.

Sort by Custom Field Item Value

To sort pivot table data by a custom field item value, you can use sortByPivotReferences property of the sortInfo object.


The below image demonstrates ascending sort on the Category field as per the data in Qtr1 of the OrderDate field.

pivot-sort-by-custom-value


The following code sample shows how to set sorting by custom field item value:

let pivotTable = spread.getActiveSheet().pivotTables.get("PivotTable");
 var sortInfo = {
  sortType: GC.Pivot.SortType.asc,
  sortValueFieldName: "Quantity",
  sortByPivotReferences: [
     {
        fieldName: "OrderDate",
        items: ["Qtr1"]
     }
    ]
}
pivotTable.sort("Category", sortInfo);

Using Designer

You can also sort data through the designer by clicking More Sort Options... from the Filter Dropdown of a field. This option opens a Sort Field dialog where you select the sort order for the target field and then click More Options... button to open another Sort dialog. On this dialog, by default, GrandTotal is selected, which gives the same results as that of sort by value. For sorting by custom field item value, select a range using the range selector of Values in selected column and click OK.

The dialog options are disabled for a row or column area field. For example, in this case, if you click More Options.. button for Category field, it will be disabled, so you must select Quantity field and then click the More Options... button.

The following image demonstrates how to sort by custom field item value using the designer:

pivot-sort-by-custom-field-value

Sort by Custom Callback

To sort pivot table data using custom logic, instead of sorting in ascending or descending order of values, you can use the custom callback function.


The below image demonstrates the sorting of the TotalSales column by using a custom callback function.

pivot-sort-by-custom-callback


The following code sample shows sorting on the TotalSales column by using a custom callback:

let pivotTable = spread.getActiveSheet().pivotTables.get("PivotTable");
 var sortInfo = {
       sortType: GC.Pivot.SortType.desc,
       customSortCallback: (fieldItemNameArray)=>{
       alert("sorting from custom callback")
       return fieldItemNameArray.sort((a,b)=>b-a);
    }
  };
pivotTable.sort("TotalSales", sortInfo);
