Gauge KPI Sparkline

SpreadJS provides a Gauge KPI sparkline which can be used to visualize the performance of metrics concerning KPI values. It can be used to indicate the effectiveness of management work or present sales targets etc.

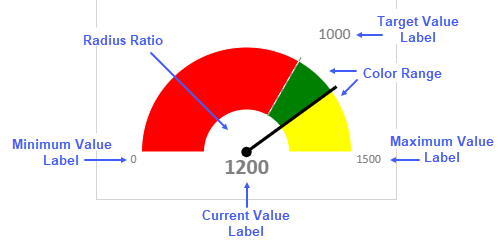

Gauge KPI sparkline uses the following values to display metrics:

  • Target Value: Indicates the expected value and displays it at the bottom.

  • Current Value: Indicates the current value.

  • Minimum Value: Indicates the smallest expected value. It should be lower than the target value and current value.

  • Maximum Value: Indicates the biggest expected value. It should be higher than the target value and current value.

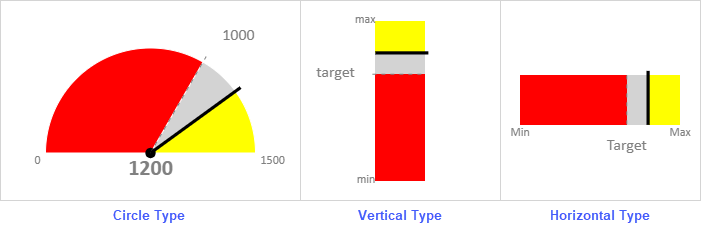

Types of Gauge KPI Sparklines

SpreadJS provides three types of Gauge KPI sparklines, namely, Circle, Vertical, and Horizontal which can be set by using the gaugeType option in the GaugeKPISparkline function.




Gauge KPI sparkline formula has the following options:

Argument

Type

Description

targetValue

Required

Number

The target value of the gauge KPI sparkline. The target value is between minValue and maxValue.

currentValue

Required

Number

The current value of the gauge KPI sparkline. The current value is between minValue and maxValue.

minValue

Required

Number

The minimum value of the gauge KPI sparkline. The minValue is less than maxValue.

maxValue

Required

Number

The maximum value of the gauge KPI sparkline. The maxValue is more than minValue.

showLabel

Optional

Boolean

Specifies whether to show the label of all the values provided in the sparkline.

If false, it will not show labels.

If true, it will only show the labels which fit inside the cell width and height. The cell should have enough width and height to show both graphs and labels.

The default value is true.

targetValueLabel

Optional

String

The string to display as the target value label.

The default value is targetValue.

currentValueLabel

Optional

String

The string to display as the current value label.

The default value is currentValue.

mintValueLabel

Optional

String

The string to display as a minimum value label.

The default value is minValue.

maxValueLabel

Optional

String

The string to display as a maximum value label.

The default value is maxValue.

fontArray

Optional

CalcArray

The array contains font format as string items for the four label types -

  • Target value label: Default value "16px Calibri"

  • Current value label: Default value "bold 22px Calibri"

  • Minimum and Maximum value labels: Default value "12px Calibri"

showLabel option must be true.

minAngle

Optional

Number

The minimum angle value of circle type. The minAnigle should be less than maxAngle.

The angle values correspond to the time in the clock. 0 is 12 o'clock, -90 is 9 o'clock, 90 is 3 o'clock, and -180/180 is 6 o'clock.

The default value is -90.

gaugeType option must be 0 (circle type).

maxAngle

Optional

Number

The maximum angle value of circle type. The maxAngle should be bigger than minAngle.

The angle values correspond to the time in the clock. 0 is 12 o'clock, -90 is 9 o'clock, 90 is 3 o'clock, and -180/180 is 6 o'clock.

The default value is 90.

gaugeType option must be 0 (circle type).

radiusRatio

Optional

Number

The value is calculated as the ratio of the inner circle radius and outer circle radius. The outer circle radius value is decided by the cell size.

The value ranges between 0 and 1. Default is 0.

gaugeType option must be 0 (circle type).

gaugeType

Optional

Number

The KPI sparkline type.

0 - Circle

1 - Vertical Bar

2 - Horizontal Bar

The default type is a circle.

colorRange

Optional

Repeatable

CalcArray

The color range between specified values.

{startValue, endValue, color_string}

Where startValue is the starting value in a range, endValue is the ending value in a range, and the color_string is the color of the range between the two specified values.

The startValue must be less than the endValue and both the values should be between minValue and maxValue.

The default color range from minValue to maxValue is filled with light gray color.

The Gauge KPI sparkline formula has the following syntax:


=GAUGEKPISPARKLINE (targetValue, currentValue, minValue, maxValue,showLabel?,targetValueLabel?,currentValueLabel?,minValueLabel?,maxValueLabel?, fontArray?, minAngle?, maxAngle?, radiusRatio?, gaugeType?, colorRange?)

Usage Scenario

Gauge KPI sparklines are used to monitor the annual sales performance of a company. The Revenue, Profit, and Sales metrics are measured against their target and actual values which helps to visualize the data easily and make meaningful deductions.


Gauge KPI sparkline in sales performance monitoring

// initializing Spread
var spread = new GC.Spread.Sheets.Workbook(document.getElementById('ss'), { sheetCount: 2 });
// get the sheets
var sheet1 = spread.sheets[0];
var sheet2 = spread.sheets[1];
// Hide gridlines
sheet1.options.gridline = { showVerticalGridline: false, showHorizontalGridline: false };
// Hide row/ col headers
sheet1.options.colHeaderVisible = false;
sheet1.options.rowHeaderVisible = false;
// set column width
for (var i = 0; i < 3; i++)
    sheet1.setColumnWidth(i, 340);
for (var i = 0; i < 4; i++)
    sheet2.setColumnWidth(i, 70);
for (var i = 0; i < 5; i++)
    sheet2.setColumnWidth(i, 170);
// set row height
sheet1.setRowHeight(0, 35, GC.Spread.Sheets.SheetArea.dataArea);
sheet1.setRowHeight(1, 280, GC.Spread.Sheets.SheetArea.dataArea);

// set data
sheet1.setValue(0, 0, "Sales($'000) Dashboard FY 2019-20", GC.Spread.Sheets.SheetArea.dataArea);
var dataArray1 =
[
    ["Parameters", "Target", "Current", "Min", "Max"],
    ["Revenue", 900, 1200, 0, 2000],
    ["Profit", 1200, 1100, 0, 2000],
    ["Sales", 1600, 1800, 0, 2000]
];
sheet2.setArray(0, 0, dataArray1);

// set GaugeKPISparkline formula
sheet1.setFormula(1, 0, '=GAUGEKPISPARKLINE(Sheet2!B2,Sheet2!C2,Sheet2!D2,Sheet2!E2,TRUE,TEXT(Sheet2!B3/1000,"$0.0K"),Sheet2!A2,TEXT(Sheet2!D2/1000,"$0.0K"),TEXT(Sheet2!E2/1000,"$0.0K"),{"normal normal 11pt Calibri","normal bold 16pt Calibri","normal normal 9pt Calibri","normal normal 9pt Calibri"},-90,90,0.4,0,{0,1200,"#FFB2BD"},{1200,1500,"#FFDFB0"},{1500,2000,"#BCEAB4"})');
sheet1.setFormula(1, 1, '=GAUGEKPISPARKLINE(Sheet2!B3,Sheet2!C3,Sheet2!D3,Sheet2!E3,TRUE,TEXT(Sheet2!B3/1000,"$0.0K"),Sheet2!A3,TEXT(Sheet2!D3/1000,"$0.0K"),TEXT(Sheet2!E3/1000,"$0.0K"),{"normal normal 11pt Calibri","normal bold 16pt Calibri","normal normal 9pt Calibri","normal normal 9pt Calibri"},-90,90,0.4,0,{0,1200,"#FFB2BD"},{1200,1500,"#FFDFB0"},{1500,2000,"#BCEAB4"})');
sheet1.setFormula(1, 2, '=GAUGEKPISPARKLINE(Sheet2!B4,Sheet2!C4,Sheet2!D4,Sheet2!E4,TRUE,TEXT(Sheet2!B4/1000,"$0.0K"),Sheet2!A4,TEXT(Sheet2!D4/1000,"$0.0K"),TEXT(Sheet2!E4/1000,"$0.0K"),{"normal normal 11pt Calibri","normal bold 16pt Calibri","normal normal 9pt Calibri","normal normal 9pt Calibri"},-90,90,0.6,0,{0,1200,"#FFB2BD"},{1200,1500,"#FFDFB0"},{1500,2000,"#BCEAB4"})');

sheet1.addSpan(0, 0, 1, 3, GC.Spread.Sheets.SheetArea.dataArea);

// set style for Row 0
style1 = new GC.Spread.Sheets.Style();
style1.font = "bold 28px Calibri";
style1.foreColor = "white";
style1.backColor = "#14928F";
style1.hAlign = GC.Spread.Sheets.HorizontalAlign.center;
sheet1.setStyle(0, 0, style1, GC.Spread.Sheets.SheetArea.dataArea);

// set style for Row 1
var style = new GC.Spread.Sheets.Style();
style.backColor = "#B4E7E2";
for (var i = 0; i < 3; i++) {
    sheet1.setStyle(1, i, style, GC.Spread.Sheets.SheetArea.dataArea);
}
