Cell Comments

SpreadJS supports comments in cells. You can specify the appearance of the comment and comment icon. You can also resize, move, or edit the comment.

Customize Comments

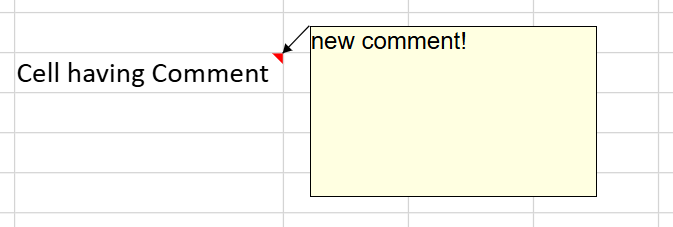

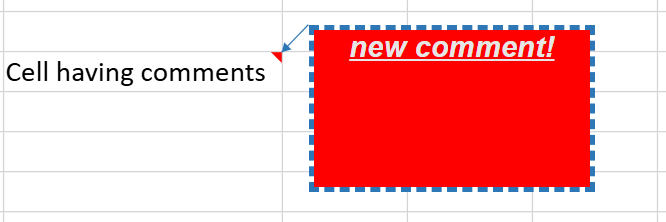

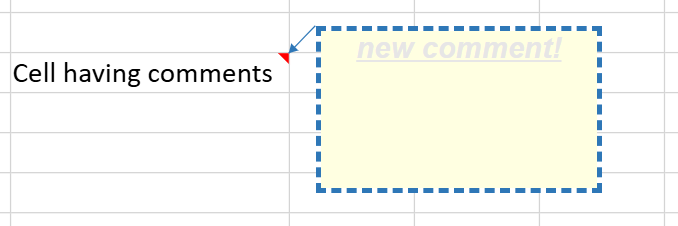

You can add a comment to a cell and specify the appearance. You can also resize, move, or edit the comment.

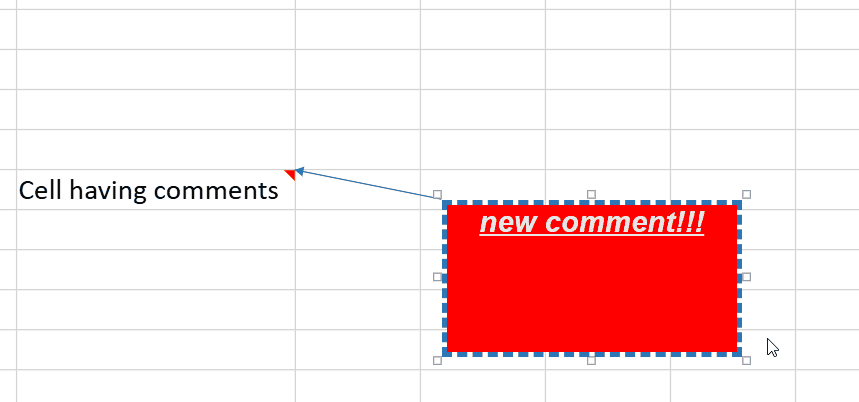

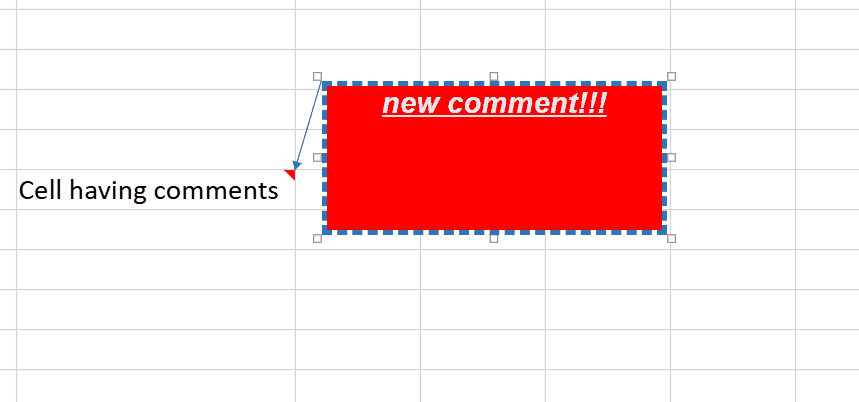

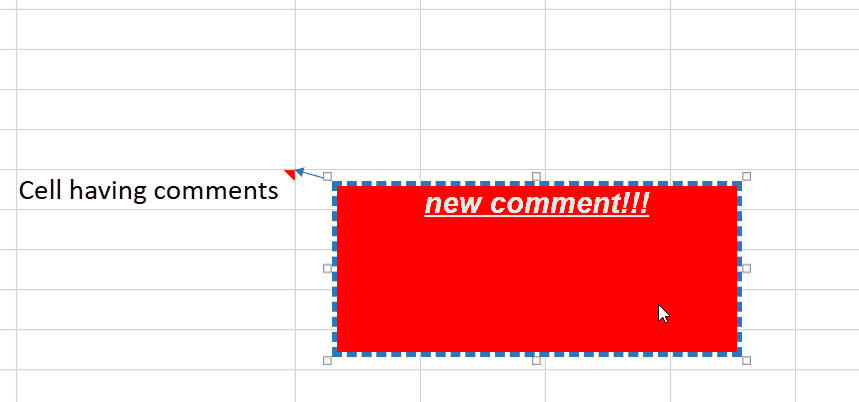

The following image displays the resize and move indicator icons. The resize icons are displayed when you select the comment. The move icon is displayed when the pointer is over the comment border.




You can lock the comment events or the comment text if the sheet options.isProtected method is set to true. The following table displays the comment property values and the result if the sheet is protected.

Locked

LockText

Result

false

false

Actions on comment take effect; the comment can be edited

true

false

Actions on comment do not take effect; the comment can be edited

false

true

Actions on comment take effect; the comment cannot be edited

true

true

Actions on comment do not take effect; the comment cannot be edited

Resizing a row or column can cause the comment's location and size to change based on the settings for the dynamicMove and dynamicSize methods. The following table displays the result of the dynamicMove and dynamicSize settings.

DynamicMove

DynamicSize

Result

true

true

Comment is moved and sized with cells

true

false

Comment is moved, but not sized with cells

false

true or false

Comment is not moved or sized with cells

You can cut, copy, or paste text in the comment if the comment is in edit mode. The comment is copied with the cell if you copy the cell.


The undo and redo actions apply if you cut, copy, or paste comment text, resize or move the comment, or change the comment's format.

Note: There are some limitations when importing a comment from an Excel-formatted file. Some border styles and fonts are not imported. The comment location may be different if the sheet range is smaller than what is displayed in the original file. Comments are imported from XLSX files.

Using Code

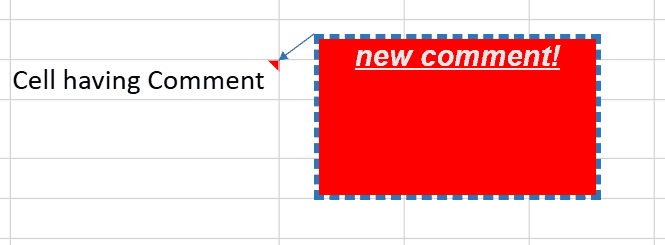

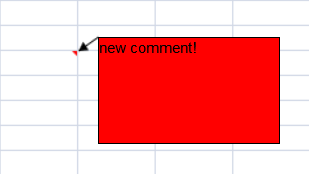

The following code adds a comment to a cell and sets the color and display mode.

var comment = activeSheet.comments.add(5,5,"new comment!");
comment.text("new comment!");
comment.backColor("red");
comment.displayMode(GC.Spread.Sheets.Comments.DisplayMode.AlwaysShown);


Customize Comment Icon

When you insert a comment, a small red triangle appears on the upper-right corner of the cell by default. You can change this default color and size of the comment icon by using the indicatorColor and indicatorSize methods.

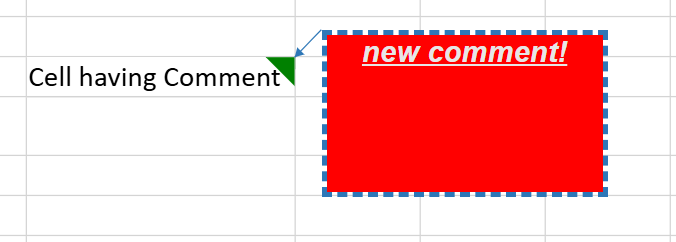

The following image shows a spreadsheet cell with a green comment icon.



Using Code

The following code adds a comment to a cell and sets the color and size for the comment icon.

// create comment
var comment = new GC.Spread.Sheets.Comments.Comment();
comment.text("This is comment for Cell[2,2]");

// set indicatorSize
comment.indicatorSize(25); // 6 as default

// set indicatorColor
comment.indicatorColor('green'); // 'red' as default

// add comment
activeSheet.comments.add(2, 1, comment);
