TableSheet

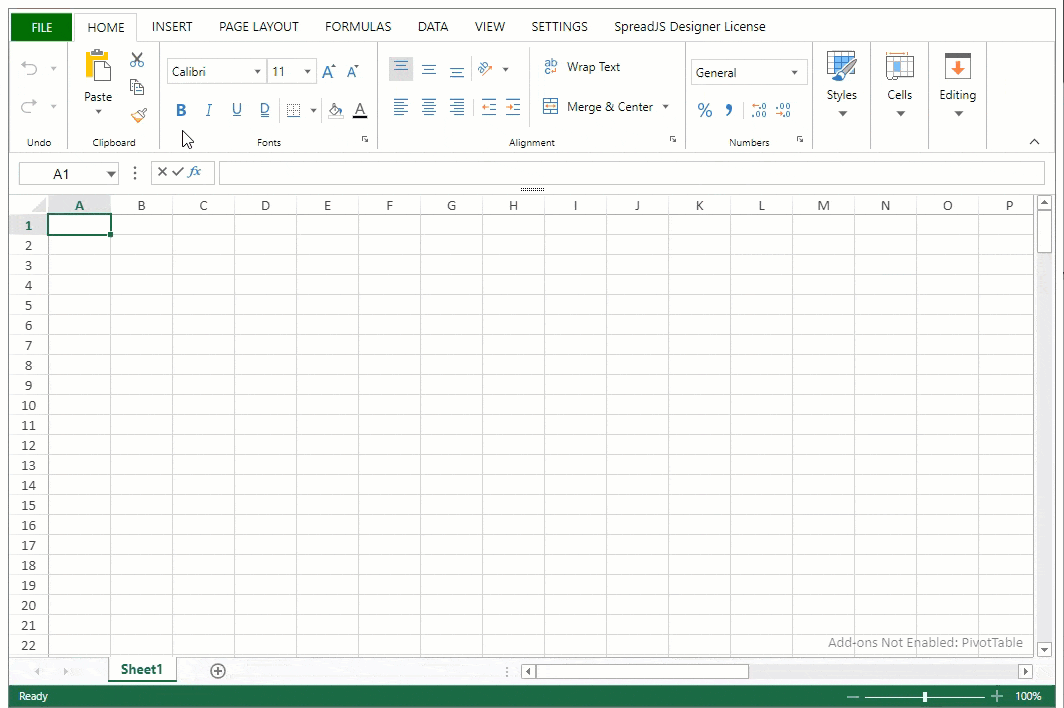

SpreadJS Designer provides the ability to add a TableSheet in a workbook. The TableSheet ribbon button can be found in the INSERT > “Tables” tab group. Clicking on the ribbon button adds a TableSheet tab in the open workbook and activates the TableSheet Design tab.

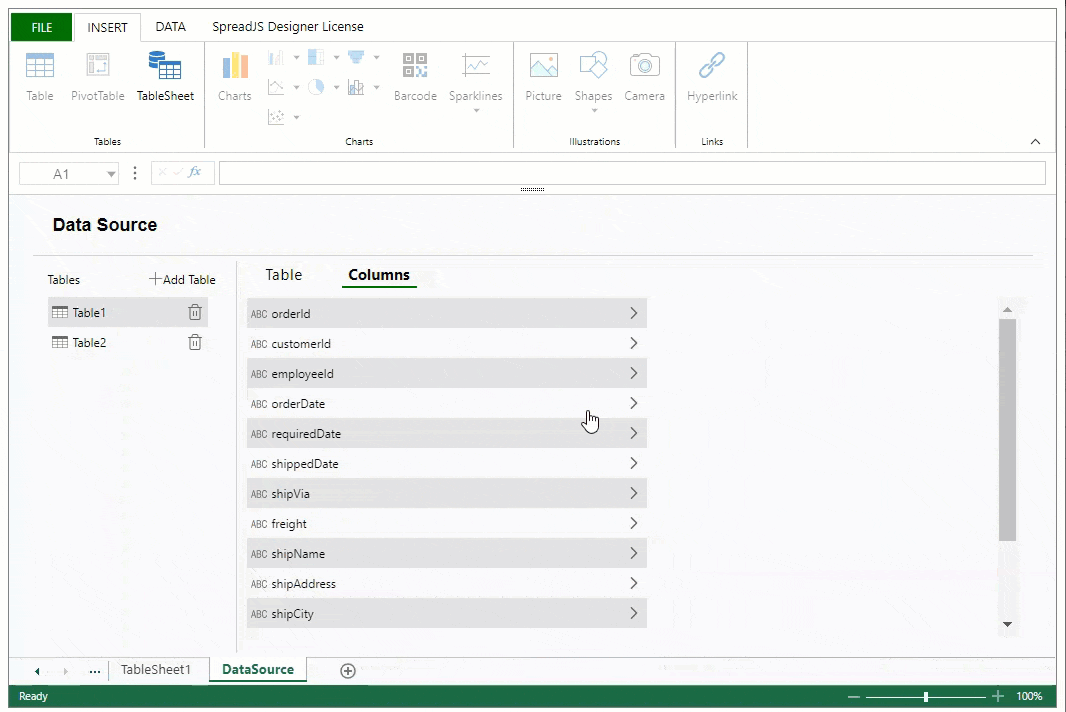

You can create a data source, starting by clicking the “DataSource” ribbon button in the DATA > “Data Binding” tab group. The DataSource tab appears where you can add a table and set the remote URL for CRUD (create, read, update, and delete) capabilities. You can fetch the table data through the Columns tab as well.

You can click a column item to show or edit a column item by setting its properties, schema type, or to add a relationship. A calculated column can also be added by clicking the “Add Calculate Column” at the end of the list.

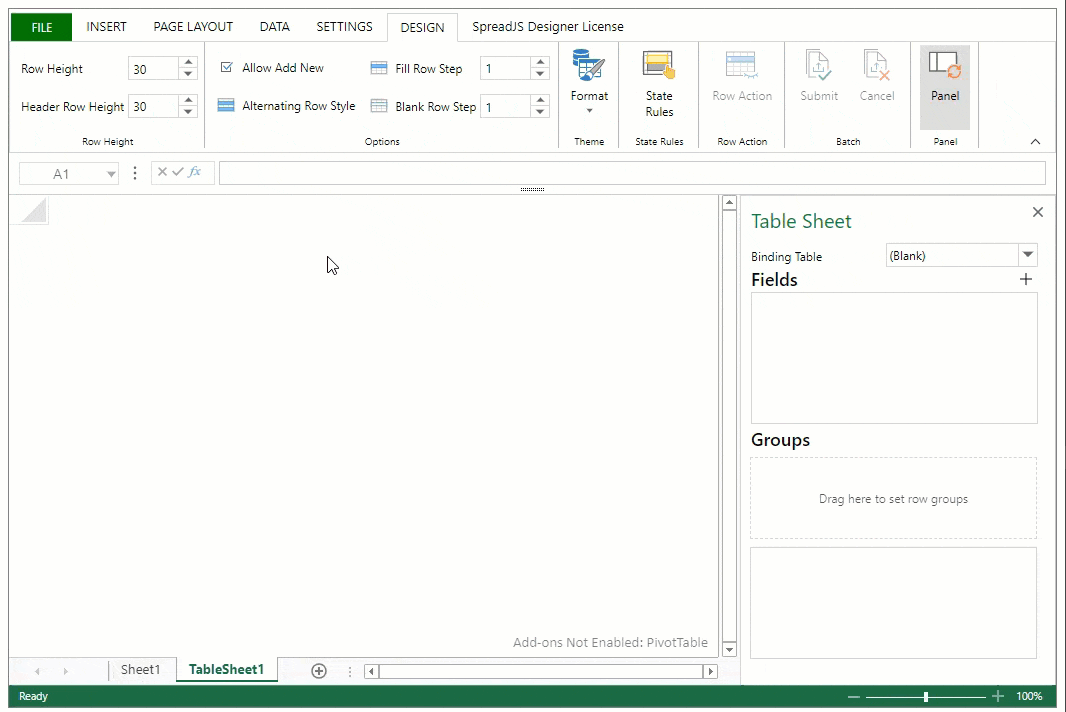

After adding the Data Source in Designer, users can now bind the table data source into TableSheet through the Designer TableSheet Panel. Select the existing table data source or create a new table data source through the “Binding Table” dropdown. The TableSheet view will load up on the previously empty area.

The TableSheet field area and group area work the same as their runtime counterpart. To know more, refer to TableSheet Components.

Note: The DataSource sheet does not export to SSJSON or Excel file, but the DataSource tables with table options is included in SSJSON.

Display Relationship in DataSource Column

SpreadJS allows you to showcase relationships as a column in the Data Source Columns list both for the designer and the runtime table sheet panel. For this purpose, the UI provides an Expand/Collapse button next to the relationship column name.

You can display or hide a specific column by clicking the Expand/Collapse button and view the relationship column information. While expanding, the data source column has a tree structure. The expandible or collapsible column node and its flexible tree structure make it a user-friendly addition to the SpreadJS Designer.

To explore the details of the relationship page, you can click the arrow button as shown below in the GIF.

Display Relationship in Designer Panel

SpreadJS also displays relationships in the Table Sheet Designer side panel. To make the UI more space-saving, the side panel only shows the name of the relationship column with an expand or collapse button. Hence, it is convenient to expand or collapse the relationship column nodes and view the child nodes, when required.

A tree structure is used in the side panel to better display the relationship between parent column relationship nodes. The check/uncheck buttons are also provided to check or uncheck the columns in the TableSheet. Selecting the main relationship column will add a column with the object in the TableSheet. If a relationship column is selected, the corresponding column will be added, and the child column names will indicate the hierarchical relationship through ".".

Drag and Drop Relationship Columns

Users can drag and drop relationship nodes in the Binding Table Fields, and Groups area on the Table Sheet Designer side panel.

You can drag and drop relationship nodes on the side panel in the following ways:

• Drag the relationship node within the Binding Table fields.

• Drag the relationship child node to the outside to adjust to the first or last node of the current relationship.

• Drag and drop the relationship child nodes within the same relationship.

• Drag the relationship to the Groups area.

As observed, the drag tips use the value of the relationship to avoid duplicate names in the Group area.
