Cell Span

You can create a cell span in the cell, row header, or column header area by using the addSpan method. You can also clear cell spans using the removeSpan method.




The entire span is treated as an active cell when using the Tab key to move the active cell to the spanned cell. The active cell outline includes the entire span.

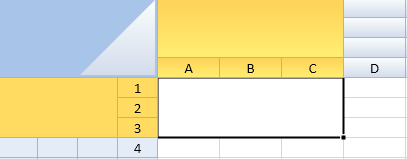

The following code sample creates a span in the header and data areas.

activeSheet.setRowCount(4,1);
activeSheet.setColumnCount(4,2);
activeSheet.addSpan(0,0,3,3,GC.Spread.Sheets.SheetArea.colHeader);
activeSheet.addSpan(0,0,3,3,GC.Spread.Sheets.SheetArea.rowHeader);
activeSheet.addSpan(0,0,3,3,GC.Spread.Sheets.SheetArea.viewport);

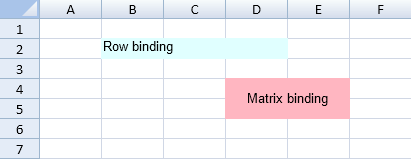

You can also bind blocks of cells by merging them as shown in the image below.



window.onload = function()
{
   var spread = new GC.Spread.Sheets.Workbook(document.getElementById("ss"),{sheetCount:3});
   var activeSheet = spread.getActiveSheet();

   // Merge three columns with origin at cell(1,1).
   activeSheet.addSpan(1, 1, 1, 3, GC.Spread.Sheets.SheetArea.viewport);

   // Merge 2 rows x 2 columns with origin at cell(3,3).
   activeSheet.addSpan(3, 3, 2, 2, GC.Spread.Sheets.SheetArea.viewport);

   // Set on every anchor cell
   var cell = activeSheet.getCell(1, 1, GC.Spread.Sheets.SheetArea.viewport);
   cell.backColor("LightCyan");
   cell.value("Row binding");
   cell = activeSheet.getCell(3, 3, GC.Spread.Sheets.SheetArea.viewport);
   cell.backColor("LightPink");
   cell.value("Matrix binding");
   cell.hAlign(GC.Spread.Sheets.HorizontalAlign.center);
   cell.vAlign(GC.Spread.Sheets.VerticalAlign.center);
}
