Auto Fill Strings

SpreadJS allows users to automatically fill strings by using the drag fill option. You can simply drag the fill handle in an upward or downward direction in order to fill the cell data with strings across the entire column in the worksheet.

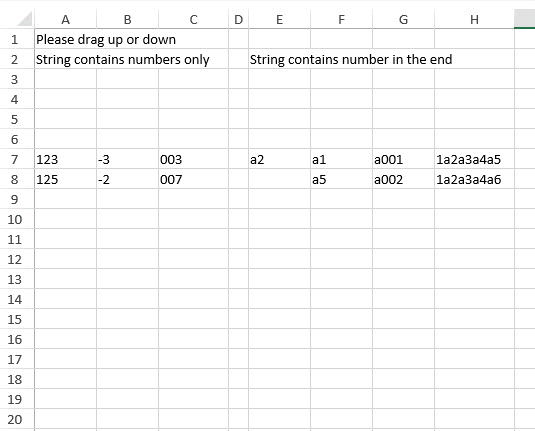

Users can also carry out other custom string filling operations like filling cells with strings that contain numbers only and filling cells with strings that contain number at the end, as shown in the image shared below.

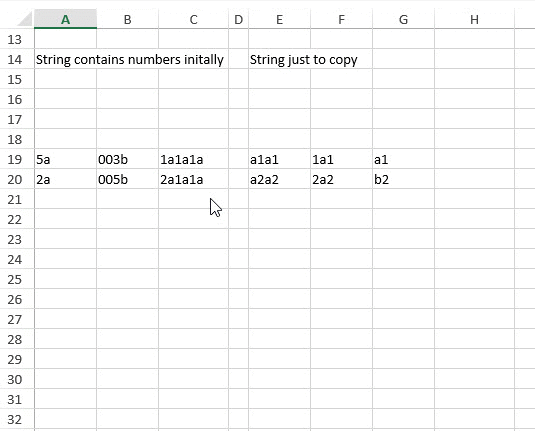

Strings that contain numbers initially and strings are automatically filled in the same order.




The following code sample shows how to automatically fill strings that contain numbers only, strings that contain number at the end, strings that contain numbers initially and strings that copy data in the same order.

$(document).ready(function ()
{
// Initializing Spread
var spread = new GC.Spread.Sheets.Workbook(document.getElementById('ss'),
{ sheetCount: 1});

// Drag Fill strings
var sheet1 = spread.getSheet(0);
sheet1.name("String DragFill");

// N: number, S: string.
/* DragFill for string, detecting number from end to start, SN first and
NS second.Trend N if S is same */
sheet1.setValue(0, 0, 'Please drag up or down');
sheet1.setValue(1, 0, 'String contains numbers only');
sheet1.setValue(6, 0, '123');
sheet1.setValue(7, 0, '125');
sheet1.setValue(6, 1, '-3');
sheet1.setValue(7, 1, '-2');
sheet1.setValue(6, 2, '003');
sheet1.setValue(7, 2, '007');
sheet1.setColumnWidth(2, 70);
sheet1.setColumnWidth(3, 20);
sheet1.setValue(1, 4, 'String contains number in the end');

// Choose "Fill Series" for the single one
sheet1.setValue(6, 4, 'a2');
sheet1.setValue(6, 5, 'a1');
sheet1.setValue(7, 5, 'a5');
sheet1.setValue(6, 6, 'a001');
sheet1.setValue(7, 6, 'a002');
sheet1.setValue(6, 7, '1a2a3a4a5');
sheet1.setValue(7, 7, '1a2a3a4a6');
sheet1.setColumnWidth(7, 80);
sheet1.setValue(13, 0, 'String contains numbers initally');
sheet1.setValue(18, 0, '5a');
sheet1.setValue(19, 0, '2a');
sheet1.setValue(18, 1, '003b');
sheet1.setValue(19, 1, '005b');
sheet1.setValue(18, 2, '1a1a1a');
sheet1.setValue(19, 2, '2a1a1a');
sheet1.setValue(13, 4, 'String just to copy');
sheet1.setValue(18, 4, 'a1a1');
sheet1.setValue(19, 4, 'a2a2');
sheet1.setValue(18, 5, '1a1');
sheet1.setValue(19, 5, '2a2');
sheet1.setValue(18, 6, 'a1');
sheet1.setValue(19, 6, 'b2');
});
